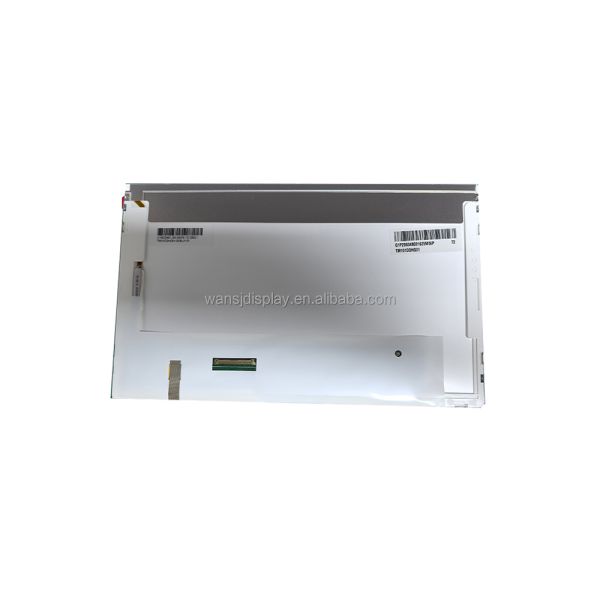

Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module

  • 1
  • 2

Type : TFT

Display Size : 10.1 inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : Tianma

Panel Type : a-Si TFT-LCD, LCM

Resolution : 1024(RGB)x600, WSVGA 117PPI

Module Outsize(mm) : 235(W)x143(H) x5.4(D) mm

Viewing Angle : 80/80/75/80 (Typ.)(CR≥10)

Brightness : 450cd/m2

Signal Interface : LVDS (1 ch, 6/8-bit) , 40 pins Connector

Touch panel : Without

Application : Industrial

Input Voltage : 3.3V (Typ.)

Warranty : 12months

Price : $53/pieces 1-99 pieces

Contact Now

Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Products Description
Panel Model
TM101DDHG01-72
Panel Brand
Tianma
Size (inch )
10.1inch
Panel Type
a-Si TFT-LCD , LCM
Resolution
1024(RGB)×600, WSVGA 117PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
235×143×5.4 (H×V×D)
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
222.72(W)×125.28(H) mm
Response Time
16 (Typ.)(Tr+Td) ms
Display Colors
262K/16.7M 47% NTSC
Light Source
WLED , 30K hours , With LED Driver
Viewing Angle
80/80/75/80 (Typ.)(CR≥10)
Touch
Without
Brightness
800 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
800 : 1 (Typ.) (TM)
Used for
Industrial, Automotive
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70°C
LCM Interface Type
LVDS (1 ch, 6/8-bit) , Connector 40 pins
FPC connector
I-pex, JAE, FI-SE20P-HFE, Pitch 0.5mm
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Details Images
Company Profile
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
Original Type Tianma TM101DDHG01-72 10.1 inch 1024x600 WSVGA LVDS Industrial Automotive TFT-LCD Screen Display Module
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
