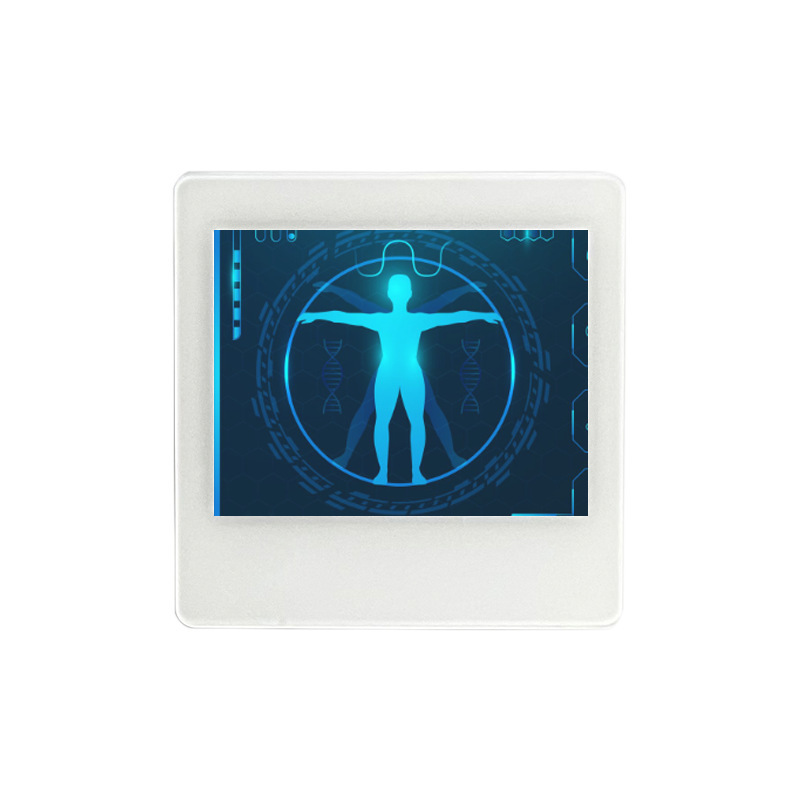

1. Product Name: 3.5-inch 640x480 IPS LCD Full Viewing Angle Liquid Crystal Display with Capacitive Touch Screen and HDMI Driver Board
2. Model:
3. Size: 3.5-inch
4. Compatible Model: --
5. With Touch Panel: Yes
6. Touch Type: Capacitive Touch
7. Display Mode: TFT
8. Display Colors: 65K/262K/16.7M
9. Resolution: 640x480
10. Dot Pitch: 0.1095(H)*0.1095(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: NV3052CGRB
13. Display Type: Transmissive, Normally Black
14. Outline Dimension: 85.80*85.80*21.36mm
15. Viewable Area: 70.68*53.16mm
16. Active Area: 70.08*52.56mm
17. Brightness: 500cd/m²
18. Contrast Ratio: 800∶1
19. Interface Type: HDMI
20. Pin Count: --
21. Pin Pitch: --
22. Connection Type: Plug-in Type
23. Operating Voltage: DC-12V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 12 LEDs, 6 series 2 parallel, VF=19.2V, IF=35-40mA
26. Service Life: 50000h
27. Operating Temperature: -10℃～+60℃
28. Storage Temperature: -20℃～+70℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
Capacitive Touch Panel Parameters:
1. Operating Principle: Projected Capacitance
2. Light Transmittance: ≥85%
3. Haze Value: ≤3%
4. Hardness: ≥6H
5. Simultaneous Touch Points: Multi-touch
6. Structure: G+G
7. Outline Dimension: 85.80*85.80*1.85mm
8. Viewable Area: 70.68*53.16mm
9. Driver IC: FT5436
10. Interface: Micro USB
11. Connection Type: Plug-in Type
12. Pin Count: --
13. Pin Pitch: --
14. Supported Systems: Linux, Android
15. Product Certification: RoHS
16. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
