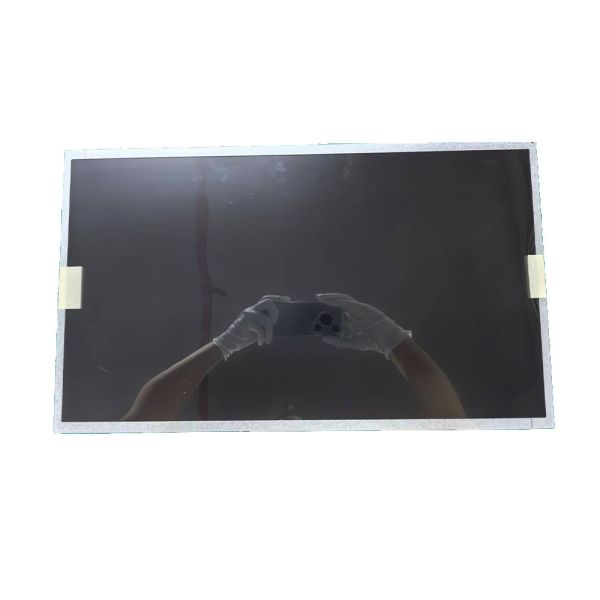

AUO P215HVN01.2 21.5 Inch TFT LCD Thin Film Led Display Module FHD For Digital Signage

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : AUO

Price : $72/pieces 1-99 pieces

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Delivery Time : 5-8 working days

Model Number : P215HVN01.2

Type : TFT

Display Size : 21.5 inch

Supplier Type : Original Brand

Backlight Type : 15S4P WLED , 30K hours , Without Driver

Resolution : 1920(RGB)x1080, FHD 102PPI, 1920(RGB)x1080, FHD 102PPI

Brightness : 250 nits, 250cd/m2

Operating Temperature : Operating Temp.: -0 ~ 50 °C

Display Type : VA, Normally Black, Transmissive

Mounting Type : Connector

Screen Size : 495.6(W)x292.2(H) x11(D) mm

Communication interface : LVDS (2 ch, 8-bit) , 30 pins Connector

Panel Type : a-Si TFT-LCD, LCM

Module Outsize(mm) : 495.6(W)x292.2(H) x11(D) mm

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Interface : LVDS (2 ch, 8-bit) , 30 pins Connector

Display Colors : 16.7M 72% NTSC

Application : Digital Signage Advertising Display

Working temperature : Operating Temperature: -0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Warranty : 12 Months

Contact Now

AUO P215HVN01.2 21.5 Inch FHD LCD Display Module
High-performance 21.5-inch TFT-LCD display module with 1920x1080 FHD resolution, 250 nits brightness, and LVDS interface, specifically designed for digital signage and advertising display applications.
Product Overview
The P215HVN01.2 is a 21.5-inch diagonal TFT-LCD display panel developed by AU Optronics. Mass production for this part starts Q2 2021. The last update on Q1 2024.
This industrial-grade display module delivers exceptional visual performance with wide viewing angles and long-lasting WLED backlight technology.
Key Features
  • 1920×1080 Full HD resolution with 102 PPI for sharp, detailed imagery
  • 250 cd/m² brightness with 3000:1 contrast ratio
  • Wide 89/89/89/89 viewing angle ensures clarity from multiple perspectives
  • LVDS interface with 30-pin connector for reliable data transmission
  • 16.7 million color depth with 72% NTSC color gamut
  • 30,000-hour WLED backlight lifespan with integrated driver
Technical Specifications
Panel Model P215HVN01.2
Panel Brand AUO
Size 21.5 inch
Resolution 1920(RGB)×1080, FHD 102PPI
Display Mode VA, Normally Black, Transmissive
Active Area 476.64(W)×268.11(H) mm
Module Dimensions 495.6(W)×292.2(H)×11(D) mm
Response Time 13/5 ms (Typ.)(Tr/Td)
Interface LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply 5.0V (Typ.)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Applications
This display module is specifically designed for digital signage, advertising displays, and various industrial monitoring applications requiring reliable performance and excellent visual quality.
About Wan Display
Founded in 2019, Shenzhen Wanshujie Photoelectric Technology specializes in providing original screens from various brands and offers comprehensive touchscreen integration solutions. With extensive industry experience and superior supply chain resources, we deliver fast, first-tier services and personalized customization options to our clients.
